Potentio Meter OBP

Beschrijving

DBW Potentiometer für Pro EV / Pro Race Drive by Wire OBP

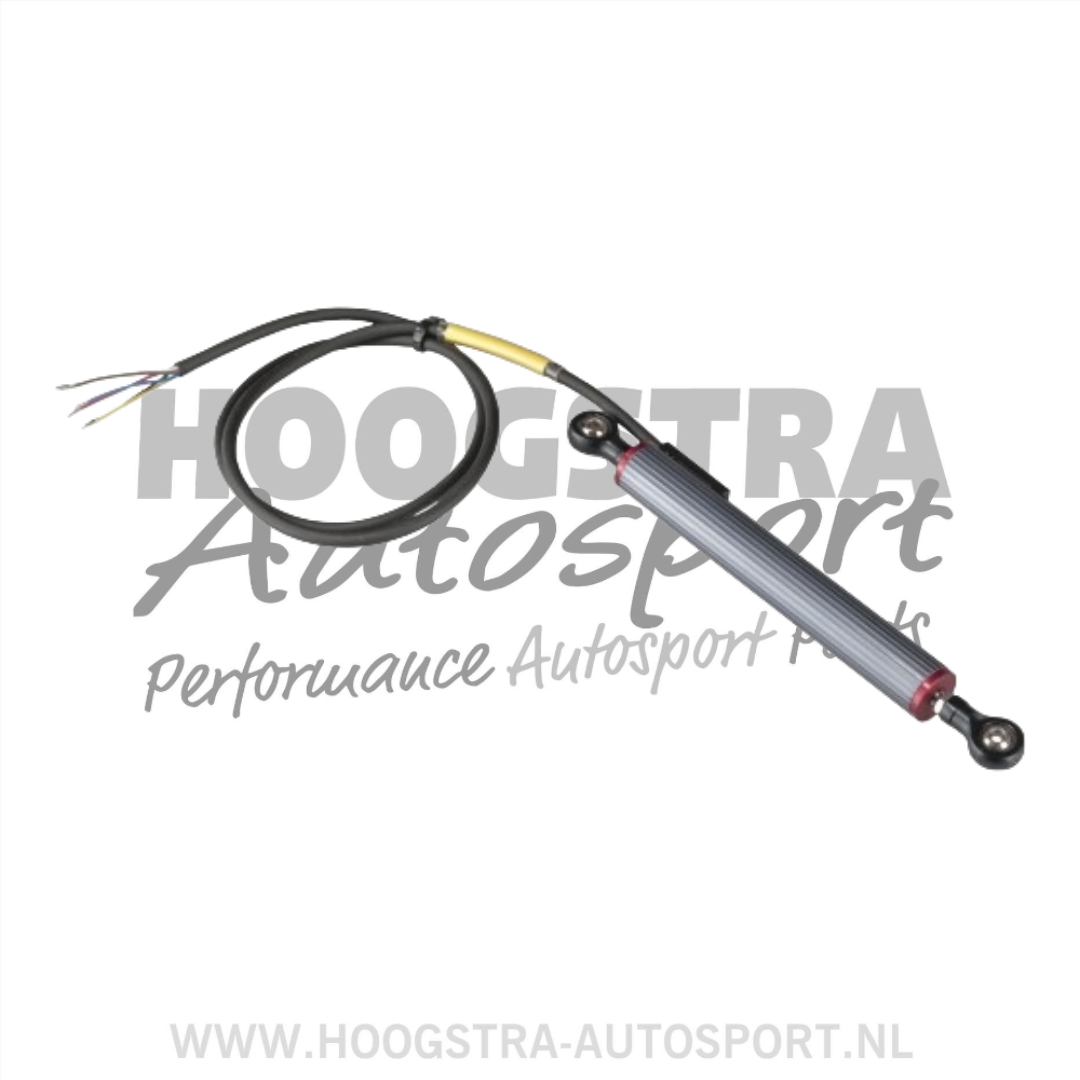

This Linear Potentiometer is designed to withstand the harsh environment in a Motorsport applications. Using proven ‘conductive plastic’ technology, the sensors offer high performance and reliability.

Please Note: All fitting hardware is included.

Specifications:

Maximum Supply Voltage – 40 VDC,
Resolution – Essentially Infinite,
Repeatability – ≤0.01mm,
Operational Speed – 10 M/s max,
Mechanical Life – > 25 Million Cycles,
Recommended Wiper Current – < 10μA,
Independent Linearity – ≤ +/- 0.5%

Connection & Output Details

6 Core Cable

Track 1

Red = +V
Black = 0V
Yellow = Signal

Track 2

Brown = +V
Blue = 0V
White = Signal

Displacement

Fully Closed = +Vmax
Fully Open = 0V

The displacement signals may be reversed by swapping the connections to the Red & Black wires or Brown & Blue wires, providing +Vmax output when Full Open & 0V when fully closed.

DO NOT connect +V supply to the Yellow and White (signal) wires, as this may cause damage to the sensor element.
