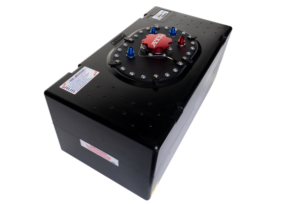

Gas tank FIA 30L (incl. FIA hologram sticker)

Description

Saver cell Tanks ATL FIA
Complete tank made of hard plastic
30 L

SA-AA-040 standard saver cell comes with :

Top Plate Vent valve Standard Saver Cell Top plate 6×10 " contains : anodized black aluminum plate 24 mounting holes (762-6M) (2) 6 jic fuel outlet (1) 6 jic return (with blanking cap)Ø2¼" (57mm) Filter Neck equipped with :> ¼ -turn filler cap (FD-AD-68) > non-return roll-over flapper valve(1) vent valve -6 Rollover vent Valve	(2) Fuel Pick Up with internal -6 'Duck-Foot' fuel pick-up hose assembly : duck-foot cap 74 micron sock filter 60 cm -6 hose -6 puchlock female fitting (for connection to a male fitting)
Internal safety foam baffling : yellow foam (petrol) comes standard

with Top Plate,

with yellow foam

Aluminum container to hold this tank can be ordered separately. (SA-AA-041)

Please note that:
To meet FIA standard, Racells must be installed inside an aluminum container.
It is not recommended for customers to build their own containers without consultation with ATL, this is to comply with ATL warranty conditions.

Dimensions: 505 (L) x 305 (W) x 224 (H) mm

Inspection: FIA FT3-1999
